messiaen
Catgirl
Level: 68


Posts: 170/1085
EXP: 2594039
For next: 134761

Since: 11-20-07


Since last post: 8.1 years
Last activity: 7.2 years
Posted on 07-16-08 07:12:07 PM (last edited by messiaen at 07-18-08 07:04 PM) Link | Quote
Here is the deconstructed Goomba Geo Layout. This probably will be useful for creating new (modified) enemies. Maybe in the future it could be expanded to an "enemies" Geo Layout thread.

All offsets are absolute:

200FB4:   1600 0001 0096 0064 <-- Sets shadow

200FBC:     0400 0000

200FC0:     1D00 0000 0000 4000 <-- Scale Polygons

200FC8:       0400 0000

200FCC:       1301 0000 0000 0000 0801 D760 <-- Not polygons, but RSP settings (*)

200FD8:         0400 0000

200FDC:         1301 0000 0000 0000 0000 0000

200FE8:           0400 0000

200FEC:           1400 0000 0000 0000 <-- "Triggers" 0x0D scaling?? (**)

200FF4:             0400 0000

200FF8:             1504 0000 0801 B690 <-- Body (not animated). Uses texture #382.

201000:           0500 0000

201004:         0500 0000

201008:           0400 0000

20100C:           0E00 0002 8029 DB48 <-- Calls Blinking Function (common to many objects)

201014:             0400 0000

201018:             1301 0030 0000 0000 0801 B5C8 <-- Head (***)

201024:             1301 0030 0000 0000 0801 B5F0 <-- Blinking Head (***)

201030:           0500 0000

201034:           1301 FFC4 FFF0 002D 0000 0000 <-- Foot 1 position (x,y,z)

201040:             0400 0000

201044:             1301 0000 0000 0000 0801 CE20 <-- Foot 1 (****)

201050:           0500 0000

201054:           1301 FFC4 FFF0 FFD3 0000 0000 <-- Foot 2 position (x,y,z)

201060:             0400 0000

201064:             1301 0000 0000 0000 0801 CF78 <-- Foot 2

201070:           0500 0000

201074:         0500 0000

201078:       0500 0000

20107C:     0500 0000

201080:   0500 0000

201084:   0100 0000


The Bank 0x08 pointed by this object starts at 0xA8181C.

(*) BC00 0002 8000 0040 <-- "MOVEWORD" RSP command. According to Mupen's RSP plug-in, the fourth byte argument = NUMLIGHT, so it probably affects lightning properties.

(**) I have to check this again, but without the 0x14 the 0x1D scaling doesn't work. At least that was my experience with custom non-animated models. This has to be tested again.

(***) The second byte is the distance between the body and the head. Normally in a 0x13 command it would be the X position, however the animation of this node makes the object rotated. Each head uses a different texture, and they are alterned in order to get the blinking effect.

(****) Foot 1 color offsets = 0xA9ACEC/0x194D0 and 0xA9ACF4/0x194D8 [absolute/relative to bank]

Here is a simple modification:
rstewart215804
User
Crazed Mario 64 Hacker!!!
Level: 11


Posts: 13/18
EXP: 5578
For next: 407

Since: 09-13-07


Since last post: 13.2 years
Last activity: 11.7 years
Posted on 07-16-08 11:25:14 PM Link | Quote
------------------------------------


[14] [00 00 00 00 00 00 00]


[1]: All children are aligned toward the camera (billboards)

[2-8]: Always 00


------------------------------------


The 0x14 command rotates all its children toward the camera. This is how the game produces all its billboards, such as the black Bob-omb main body.

In the Goomba, the 0x14 command rotates a small billboard located between the head and feet. In your picture it is the big gray block.



Another command that is quite interesting and that isn't documented is the 0x10 command.

------------------------------------


[10] [00 00 00] [00 8E] [FF CD] [FF 82] [00 16] [FF D8] [FF 79]


[1]: 10= Full rotation and position. Used only for Mario's cap currently.

[2,3,4]: Always 00

[5,6], [7,8], [9,10]: X, Y and Z position of the part, relative to the current node, 16-bit signed integers.

[11,12], [13,14], [15,16]: X, Y and Z rotation of the part, relative to the current node, 16-bit signed integers.


------------------------------------


It currently is only used for Mario wings on his hat but it can be used to rotate portions of objects. With this command you can give the Goomba an upside down head.


____________________
Just you wait until next time. Until then, keep that Control Stick smokin’! Buwaa ha ha!
messiaen
Catgirl
Level: 68


Posts: 171/1085
EXP: 2594039
For next: 134761

Since: 11-20-07


Since last post: 8.1 years
Last activity: 7.2 years
Posted on 07-17-08 04:49:37 PM (last edited by messiaen at 07-18-08 07:08 PM) Link | Quote
Nice! I was having a hard time adding body parts to the Goomba, perhaps the 0x10 command will help. Here's the Bob-omb enemy Geo Layout, it is very similar to the Goomba:




Starts at offset 0x201088. Bank 08 = 0xA8181C.


1600 0001 00C8 0046 <-- Sets Shadow

  0400 0000

  1D00 0000 0000 6000 <-- Scaling

    0400 0000

    1301 0000 0000 0000 0000 0000

      0400 0000

      1301 0000 0000 0000 0000 0000

        0400 0000

        1301 0000 0000 0000 0000 0000

          0400 0000

          1400 0000 0000 0000 <-- See previous post

            0400 0000

            1504 0000 0802 2D08 <-- Main body (not animated)

          0500 0000

        0500 0000

        1301 0000 0039 FFC4 0000 0000 <-- Position for Foot 1

          0400 0000

          1301 0000 0000 0000 0000 0000

            0400 0000

            1301 005B 0000 0000 0000 0000 <-- Another position parameter for Foot 1 (*)

              0400 0000

              1301 0000 0000 0000 0802 3270 <-- Foot 1

            0500 0000

          0500 0000

        0500 0000

        1301 0000 0037 003E 0000 0000 <-- Position for Foot 2

          0400 0000

          1301 0000 0000 0000 0000 0000

            0400 0000

            1301 005B 0000 0000 0000 0000 <-- Another parameter for Foot 2 (*)

              0400 0000

              1301 0000 0000 0000 0802 3378 <-- Foot 2

            0500 0000

          0500 0000

        0500 0000

        1301 0000 0000 0000 0802 3480 <-- Top part (trigger)?

        0E00 0002 8029 DB48 <-- Calls Blinking function (used by many objects)

          0400 0000

          1304 0000 0000 0000 0802 2B58 <-- Eyes

          1304 0000 0000 0000 0802 2B88 <-- Blinking eyes

        0500 0000

      0500 0000

    0500 0000

  0500 0000

0500 0000

0100 0000


(*) The foot is rotated, so the "X" parameter is actually a "Y". Using negative numbers (ie, above 8000) will increase not only the foot Y position but also the amplitude of the movement (?).

Do you have any clue why so many empty 0x13 commands are used?
VL-Tone
Member
Super Mario 64 forum moderator
Level: 53


Posts: 225/621
EXP: 1135504
For next: 21615

Since: 07-27-07

From: Montreal, Canada

Since last post: 4.7 years
Last activity: 1.2 years
Posted on 08-02-08 08:26:40 PM Link | Quote
Time: Now - Date: Today - Weather: What can be seen outside. - Mood: How it feels. Answer to the universe: 42

0x13 commands that have "00 00 00 00" as a polygon data pointers are used as rotation joints. They're always found before a 0x04 command so that all children will rotate around that point. While they don't have a polygon pointer, they still use the x,y and z coordinates. The reason why you see a few 0x13 that look completely empty is that many parts in the Goomba must be rotating around the center, at coord 0,0,0.

About that 0x14 command, it's a very interesting find! I managed to achieve billboarding in TT64 and was looking for a way to know which object use billboarding. I was a little disappointed to find that simple objects like trees and coins don't use the 0x14 command. But what I just found solves the problem: the 0x21 behavior script command sets the whole object to billboarding!

The only problem is that TT64 doesn't currently read behavior scripts when loading objects. I guess it'll have to do it eventually anyway giving the progress that was made regarding behavior scripts.

____________________
Stevoisiak
Member
Level: 38


Posts: 104/283
EXP: 345476
For next: 24971

Since: 11-22-07

From: New York, Long Island

Since last post: 12.3 years
Last activity: 5.6 years
Posted on 08-04-08 12:31:33 PM Link | Quote
Originally posted by VL-Tone

About that 0x14 command, it's a very interesting find! I managed to achieve billboarding in TT64 and was looking for a way to know which object use billboarding. I was a little disappointed to find that simple objects like trees and coins don't use the 0x14 command. But what I just found solves the problem: the 0x21 behavior script command sets the whole object to billboarding!

Billboarding? In Mario 64? Do you mean that there are objects that use billboarding in SM64? Also, for the billboarding scripts, why not just make special cases for certain objects?
messiaen
Catgirl
Level: 68


Posts: 190/1085
EXP: 2594039
For next: 134761

Since: 11-20-07


Since last post: 8.1 years
Last activity: 7.2 years
Posted on 08-04-08 01:22:33 PM Link | Quote
Trees, Mr. I and the flames are examples of objects which use this kind of effect. Since Mario64 is vey low-polygonish, this is a good trick to cut the number of polygons.

In the Goomba, it is used in the body. Rather than using a complex 3D structure such as the head, it's just a simple square (formed by two triangles) with a texture applied and the billboarding effect:

200FEC: 1400 0000 0000 0000 <-- Enable Billboarding for next

200FF4:   0400 0000

200FF8:   1504 0000 0801 B690 <-- Body (not animated). Uses texture #382.
Stevoisiak
Member
Level: 38


Posts: 105/283
EXP: 345476
For next: 24971

Since: 11-22-07

From: New York, Long Island

Since last post: 12.3 years
Last activity: 5.6 years
Posted on 08-04-08 01:52:04 PM Link | Quote
Originally posted by messiaen
Trees, Mr. I and the flames are examples of objects which use this kind of effect. Since Mario64 is vey low-polygonish, this is a good trick to cut the number of polygons.

In the Goomba, it is used in the body. Rather than using a complex 3D structure such as the head, it's just a simple square (formed by two triangles) with a texture applied and the billboarding effect:

200FEC: 1400 0000 0000 0000 <-- Enable Billboarding for next

200FF4:   0400 0000

200FF8:   1504 0000 0801 B690 <-- Body (not animated). Uses texture #382.

Oh yeah. I forgot about the goomba. But the 2D objects also use billboarding?
uberoe
User
Level: 11


Posts: 11/17
EXP: 4810
For next: 1175

Since: 05-31-09


Since last post: 12.0 years
Last activity: 11.9 years
Posted on 06-23-09 05:12:19 AM (last edited by uberoe at 06-25-09 03:38 PM) Link | Quote
***Fly Guy Geo Layout Deconstruction
00200DE8 [ 16 00 00 01 00 96 00 64 ]<-- Sets shadow
00200DF0 [ 04 00 00 00 ]
00200DF4 [ 1D 00 00 00 00 00 40 00 ]<-- Scales Polygons
00200DFC [ 04 00 00 00 ]
00200E00 [ 13 01 00 00 00 00 00 00 00 00 00 00 ]
00200E0C [ 04 00 00 00 ]
00200E10 [ 13 01 00 00 00 00 00 00 08 01 17 10 ]<-- Body
00200E1C [ 04 00 00 00 ]
00200E20 [ 13 01 FF D3 FF EC FF C9 00 00 00 00 ]<-- Right Foot position (x,y,z)
00200E2C [ 04 00 00 00 ]
00200E30 [ 13 01 00 00 00 00 00 00 08 01 08 40 ]<-- Right Foot
00200E3C [ 05 00 00 00 ]
00200E40 [ 13 01 FF D3 FF EC 00 37 00 00 00 00 ]<-- Left Foot position (x,y,z)
00200E4C [ 04 00 00 00 ]
00200E50 [ 13 01 00 00 00 00 00 00 08 01 09 68 ]<-- Left Foot
00200E5C [ 05 00 00 00 ]
00200E60 [ 13 01 00 FA 00 00 00 00 00 00 00 00 ]<-- Body (Head,Arms,etc)?
00200E6C [ 04 00 00 00 ]
00200E70 [ 13 05 00 00 00 00 00 00 08 01 0B 80 ]<-- Propeller ontop of head
00200E7C [ 13 01 00 00 00 00 00 00 00 00 00 00 ]
00200E88 [ 05 00 00 00 ]
00200E8C [ 05 00 00 00 ]
00200E90 [ 05 00 00 00 ]
00200E94 [ 05 00 00 00 ]
00200E98 [ 05 00 00 00 ]
00200E9C [ 01 00 00 00 ]

***Hears a little video of the feet replaced with yoshi's

<object width="300" height="300"><embed src="http://www.youtube.com/v/co7a4pUF8AI&hl=en&fs=1&" type="application/x-shockwave-flash" allowscriptaccess="always" allowfullscreen="true" width="425" height="344"></embed></object>

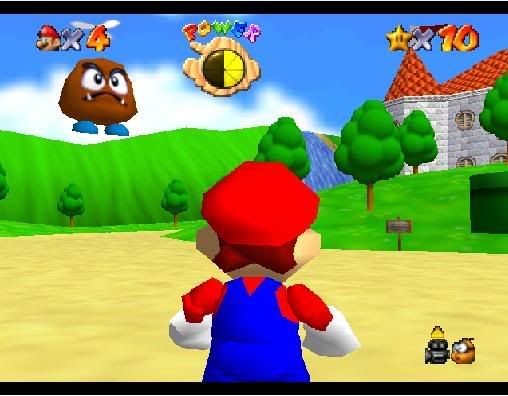

***firts try at a new enemy

Photobucket

____________________
Super Mario World Hack on it's way!!!
minimaster58
Member
Level: 21


Posts: 27/75
EXP: 43426
For next: 6517

Since: 01-26-10


Since last post: 11.9 years
Last activity: 12.0 years
Posted on 02-06-10 02:25:58 PM Link | Quote
So one day we can make Para Goombas?
Mr. Game
Keep practicing, kid.
Level: 14


Posts: 18/30
EXP: 10987
For next: 2084

Since: 01-25-10


Since last post: 12.2 years
Last activity: 11.4 years
Posted on 02-07-10 03:23:21 PM Link | Quote
Originally posted by minimaster58
So one day we can make Para Goombas?

I think that's possible.......
VideoGuy
Member
Level: 22


Posts: 77/84
EXP: 52954
For next: 5396

Since: 05-10-09


Since last post: 12.0 years
Last activity: 9.9 years
Posted on 02-07-10 04:54:49 PM Link | Quote
One day we'll be able to do anything we want to SM64. Just look at what they've done with SMW. But we'll need to get an object geometry importer first, instead of just the level one we have now.
Next newer thread | Next older thread
Jul - SM64 Hacking (Archive) - Goomba Geo Layout Deconstruction New poll - New thread - New reply


Rusted Logic
Acmlmboard - commit 47be4dc [2021-08-23]
©2000-2022 Acmlm, Xkeeper, Kaito Sinclaire, et al.

35 database queries, 3 query cache hits.
Query execution time:  0.103767 seconds
Script execution time:  0.020623 seconds
Total render time:  0.124390 seconds


TidyHTML vomit below
line 1 column 1 - Warning: missing <!DOCTYPE> declaration
line 2 column 300 - Warning: unescaped & or unknown entity "&page"
line 119 column 11 - Warning: <form> isn't allowed in <table> elements
line 118 column 10 - Info: <table> previously mentioned
line 120 column 11 - Warning: missing <tr>
line 120 column 119 - Warning: missing </font> before </td>
line 124 column 16 - Warning: plain text isn't allowed in <tr> elements
line 120 column 11 - Info: <tr> previously mentioned
line 125 column 68 - Warning: missing </nobr> before </td>
line 141 column 68 - Warning: missing </nobr> before <tr>
line 147 column 35 - Warning: missing <tr>
line 147 column 50 - Warning: missing </font> before </td>
line 148 column 37 - Warning: unescaped & or unknown entity "&id"
line 147 column 203 - Warning: missing </font> before </table>
line 149 column 35 - Warning: missing <tr>
line 149 column 50 - Warning: missing </font> before </td>
line 149 column 91 - Warning: missing </font> before </table>
line 156 column 9 - Warning: <div> isn't allowed in <table> elements
line 152 column 17 - Info: <table> previously mentioned
line 158 column 9 - Warning: missing <tr>
line 176 column 13 - Warning: missing <tr>
line 177 column 99 - Warning: unescaped & or unknown entity "&postid"
line 232 column 9 - Warning: <div> isn't allowed in <table> elements
line 152 column 17 - Info: <table> previously mentioned
line 234 column 9 - Warning: missing <tr>
line 252 column 13 - Warning: missing <tr>
line 253 column 99 - Warning: unescaped & or unknown entity "&postid"
line 287 column 9 - Warning: <div> isn't allowed in <table> elements
line 152 column 17 - Info: <table> previously mentioned
line 289 column 9 - Warning: missing <tr>
line 307 column 13 - Warning: missing <tr>
line 308 column 99 - Warning: unescaped & or unknown entity "&postid"
line 369 column 9 - Warning: <div> isn't allowed in <table> elements
line 152 column 17 - Info: <table> previously mentioned
line 371 column 9 - Warning: missing <tr>
line 389 column 13 - Warning: missing <tr>
line 390 column 99 - Warning: unescaped & or unknown entity "&postid"
line 392 column 73 - Warning: <style> isn't allowed in <td> elements
line 392 column 9 - Info: <td> previously mentioned
line 392 column 137 - Warning: missing </div>
line 400 column 9 - Warning: <div> isn't allowed in <table> elements
line 152 column 17 - Info: <table> previously mentioned
line 402 column 9 - Warning: missing <tr>
line 420 column 13 - Warning: missing <tr>
line 421 column 99 - Warning: unescaped & or unknown entity "&postid"
line 428 column 9 - Warning: <div> isn't allowed in <table> elements
line 152 column 17 - Info: <table> previously mentioned
line 430 column 9 - Warning: missing <tr>
line 448 column 13 - Warning: missing <tr>
line 449 column 99 - Warning: unescaped & or unknown entity "&postid"
line 461 column 9 - Warning: <div> isn't allowed in <table> elements
line 152 column 17 - Info: <table> previously mentioned
line 463 column 9 - Warning: missing <tr>
line 481 column 13 - Warning: missing <tr>
line 482 column 99 - Warning: unescaped & or unknown entity "&postid"
line 495 column 9 - Warning: <div> isn't allowed in <table> elements
line 152 column 17 - Info: <table> previously mentioned
line 497 column 9 - Warning: missing <tr>
line 515 column 13 - Warning: missing <tr>
line 516 column 101 - Warning: unescaped & or unknown entity "&postid"
line 548 column 1709 - Warning: unescaped & or unknown entity "&hl"
line 548 column 1715 - Warning: unescaped & or unknown entity "&fs"
line 548 column 1646 - Warning: discarding unexpected <param>
line 548 column 1723 - Warning: discarding unexpected </param>
line 548 column 1731 - Warning: discarding unexpected <param>
line 548 column 1774 - Warning: discarding unexpected </param>
line 548 column 1782 - Warning: discarding unexpected <param>
line 548 column 1829 - Warning: discarding unexpected </param>
line 548 column 1888 - Warning: unescaped & or unknown entity "&hl"
line 548 column 1894 - Warning: unescaped & or unknown entity "&fs"
line 552 column 2158 - Warning: unescaped & or unknown entity "&current"
line 555 column 9 - Warning: <div> isn't allowed in <table> elements
line 152 column 17 - Info: <table> previously mentioned
line 557 column 9 - Warning: missing <tr>
line 575 column 13 - Warning: missing <tr>
line 576 column 101 - Warning: unescaped & or unknown entity "&postid"
line 581 column 9 - Warning: <div> isn't allowed in <table> elements
line 152 column 17 - Info: <table> previously mentioned
line 583 column 9 - Warning: missing <tr>
line 601 column 13 - Warning: missing <tr>
line 602 column 101 - Warning: unescaped & or unknown entity "&postid"
line 608 column 9 - Warning: <div> isn't allowed in <table> elements
line 152 column 17 - Info: <table> previously mentioned
line 610 column 9 - Warning: missing <tr>
line 628 column 13 - Warning: missing <tr>
line 629 column 101 - Warning: unescaped & or unknown entity "&postid"
line 634 column 17 - Warning: missing <tr>
line 634 column 17 - Warning: discarding unexpected <table>
line 637 column 35 - Warning: missing <tr>
line 637 column 50 - Warning: missing </font> before </td>
line 637 column 91 - Warning: missing </font> before </table>
line 639 column 35 - Warning: missing <tr>
line 639 column 50 - Warning: missing </font> before </td>
line 640 column 37 - Warning: unescaped & or unknown entity "&id"
line 639 column 203 - Warning: missing </font> before </table>
line 641 column 17 - Warning: discarding unexpected </textarea>
line 641 column 28 - Warning: discarding unexpected </form>
line 641 column 35 - Warning: discarding unexpected </embed>
line 641 column 43 - Warning: discarding unexpected </noembed>
line 641 column 53 - Warning: discarding unexpected </noscript>
line 641 column 64 - Warning: discarding unexpected </noembed>
line 641 column 74 - Warning: discarding unexpected </embed>
line 641 column 82 - Warning: discarding unexpected </table>
line 641 column 90 - Warning: discarding unexpected </table>
line 643 column 9 - Warning: missing </font> before <table>
line 655 column 25 - Warning: discarding unexpected </font>
line 664 column 57 - Warning: discarding unexpected </font>
line 642 column 1 - Warning: missing </center>
line 120 column 63 - Warning: <img> lacks "alt" attribute
line 125 column 19 - Warning: <td> attribute "width" has invalid value "120px"
line 125 column 93 - Warning: <img> lacks "alt" attribute
line 141 column 19 - Warning: <td> attribute "width" has invalid value "120px"
line 141 column 98 - Warning: <img> lacks "alt" attribute
line 148 column 44 - Warning: <img> proprietary attribute value "absmiddle"
line 148 column 142 - Warning: <img> proprietary attribute value "absmiddle"
line 148 column 245 - Warning: <img> proprietary attribute value "absmiddle"
line 161 column 22 - Warning: <img> lacks "alt" attribute
line 161 column 63 - Warning: <img> lacks "alt" attribute
line 161 column 111 - Warning: <img> lacks "alt" attribute
line 161 column 161 - Warning: <img> lacks "alt" attribute
line 172 column 15 - Warning: <img> lacks "alt" attribute
line 229 column 2759 - Warning: <img> lacks "alt" attribute
line 237 column 22 - Warning: <img> lacks "alt" attribute
line 237 column 63 - Warning: <img> lacks "alt" attribute
line 237 column 112 - Warning: <img> lacks "alt" attribute
line 237 column 162 - Warning: <img> lacks "alt" attribute
line 238 column 11 - Warning: <img> lacks "alt" attribute
line 248 column 15 - Warning: <img> lacks "alt" attribute
line 283 column 1482 - Warning: <img> lacks "alt" attribute
line 292 column 22 - Warning: <img> lacks "alt" attribute
line 292 column 63 - Warning: <img> lacks "alt" attribute
line 292 column 111 - Warning: <img> lacks "alt" attribute
line 292 column 161 - Warning: <img> lacks "alt" attribute
line 303 column 15 - Warning: <img> lacks "alt" attribute
line 374 column 22 - Warning: <img> lacks "alt" attribute
line 374 column 63 - Warning: <img> lacks "alt" attribute
line 374 column 112 - Warning: <img> lacks "alt" attribute
line 374 column 162 - Warning: <img> lacks "alt" attribute
line 385 column 15 - Warning: <img> lacks "alt" attribute
line 392 column 693 - Warning: <img> lacks "alt" attribute
line 397 column 2684 - Warning: <img> lacks "alt" attribute
line 397 column 2843 - Warning: <img> lacks "alt" attribute
line 405 column 22 - Warning: <img> lacks "alt" attribute
line 405 column 63 - Warning: <img> lacks "alt" attribute
line 405 column 112 - Warning: <img> lacks "alt" attribute
line 405 column 162 - Warning: <img> lacks "alt" attribute
line 416 column 15 - Warning: <img> lacks "alt" attribute
line 433 column 22 - Warning: <img> lacks "alt" attribute
line 433 column 63 - Warning: <img> lacks "alt" attribute
line 433 column 111 - Warning: <img> lacks "alt" attribute
line 433 column 161 - Warning: <img> lacks "alt" attribute
line 444 column 15 - Warning: <img> lacks "alt" attribute
line 466 column 22 - Warning: <img> lacks "alt" attribute
line 466 column 63 - Warning: <img> lacks "alt" attribute
line 466 column 112 - Warning: <img> lacks "alt" attribute
line 466 column 162 - Warning: <img> lacks "alt" attribute
line 477 column 15 - Warning: <img> lacks "alt" attribute
line 500 column 22 - Warning: <img> lacks "alt" attribute
line 500 column 63 - Warning: <img> lacks "alt" attribute
line 500 column 112 - Warning: <img> lacks "alt" attribute
line 500 column 162 - Warning: <img> lacks "alt" attribute
line 501 column 11 - Warning: <img> lacks "alt" attribute
line 511 column 15 - Warning: <img> lacks "alt" attribute
line 560 column 22 - Warning: <img> lacks "alt" attribute
line 560 column 63 - Warning: <img> lacks "alt" attribute
line 560 column 112 - Warning: <img> lacks "alt" attribute
line 560 column 162 - Warning: <img> lacks "alt" attribute
line 561 column 11 - Warning: <img> lacks "alt" attribute
line 571 column 15 - Warning: <img> lacks "alt" attribute
line 586 column 22 - Warning: <img> lacks "alt" attribute
line 586 column 63 - Warning: <img> lacks "alt" attribute
line 586 column 112 - Warning: <img> lacks "alt" attribute
line 586 column 162 - Warning: <img> lacks "alt" attribute
line 587 column 11 - Warning: <img> lacks "alt" attribute
line 597 column 15 - Warning: <img> lacks "alt" attribute
line 613 column 22 - Warning: <img> lacks "alt" attribute
line 613 column 63 - Warning: <img> lacks "alt" attribute
line 613 column 112 - Warning: <img> lacks "alt" attribute
line 613 column 162 - Warning: <img> lacks "alt" attribute
line 624 column 15 - Warning: <img> lacks "alt" attribute
line 640 column 44 - Warning: <img> proprietary attribute value "absmiddle"
line 640 column 142 - Warning: <img> proprietary attribute value "absmiddle"
line 640 column 245 - Warning: <img> proprietary attribute value "absmiddle"
line 649 column 25 - Warning: <img> lacks "alt" attribute
line 654 column 267 - Warning: <img> lacks "alt" attribute
line 149 column 50 - Warning: trimming empty <font>
line 634 column 17 - Warning: trimming empty <tr>
line 637 column 50 - Warning: trimming empty <font>
line 125 column 68 - Warning: <nobr> is not approved by W3C
line 141 column 68 - Warning: <nobr> is not approved by W3C
line 177 column 27 - Warning: <nobr> is not approved by W3C
line 253 column 27 - Warning: <nobr> is not approved by W3C
line 308 column 27 - Warning: <nobr> is not approved by W3C
line 390 column 27 - Warning: <nobr> is not approved by W3C
line 392 column 157 - Warning: <table> proprietary attribute "height"
line 392 column 222 - Warning: <td> proprietary attribute "background"
line 392 column 318 - Warning: <td> proprietary attribute "background"
line 392 column 408 - Warning: <table> proprietary attribute "height"
line 392 column 488 - Warning: <td> proprietary attribute "background"
line 392 column 1443 - Warning: <td> proprietary attribute "background"
line 421 column 27 - Warning: <nobr> is not approved by W3C
line 449 column 27 - Warning: <nobr> is not approved by W3C
line 482 column 27 - Warning: <nobr> is not approved by W3C
line 516 column 27 - Warning: <nobr> is not approved by W3C
line 576 column 27 - Warning: <nobr> is not approved by W3C
line 602 column 27 - Warning: <nobr> is not approved by W3C
line 629 column 27 - Warning: <nobr> is not approved by W3C
Info: Document content looks like HTML5
Info: No system identifier in emitted doctype
Tidy found 193 warnings and 0 errors!


The alt attribute should be used to give a short description
of an image; longer descriptions should be given with the
longdesc attribute which takes a URL linked to the description.
These measures are needed for people using non-graphical browsers.

For further advice on how to make your pages accessible
see http://www.w3.org/WAI/GL.
You are recommended to use CSS to specify the font and
properties such as its size and color. This will reduce
the size of HTML files and make them easier to maintain
compared with using <FONT> elements.

You are recommended to use CSS to control line wrapping.
Use "white-space: nowrap" to inhibit wrapping in place
of inserting <NOBR>...</NOBR> into the markup.

About HTML Tidy: https://github.com/htacg/tidy-html5
Bug reports and comments: https://github.com/htacg/tidy-html5/issues
Official mailing list: https://lists.w3.org/Archives/Public/public-htacg/
Latest HTML specification: http://dev.w3.org/html5/spec-author-view/
Validate your HTML documents: http://validator.w3.org/nu/
Lobby your company to join the W3C: http://www.w3.org/Consortium

Do you speak a language other than English, or a different variant of
English? Consider helping us to localize HTML Tidy. For details please see
https://github.com/htacg/tidy-html5/blob/master/README/LOCALIZE.md
